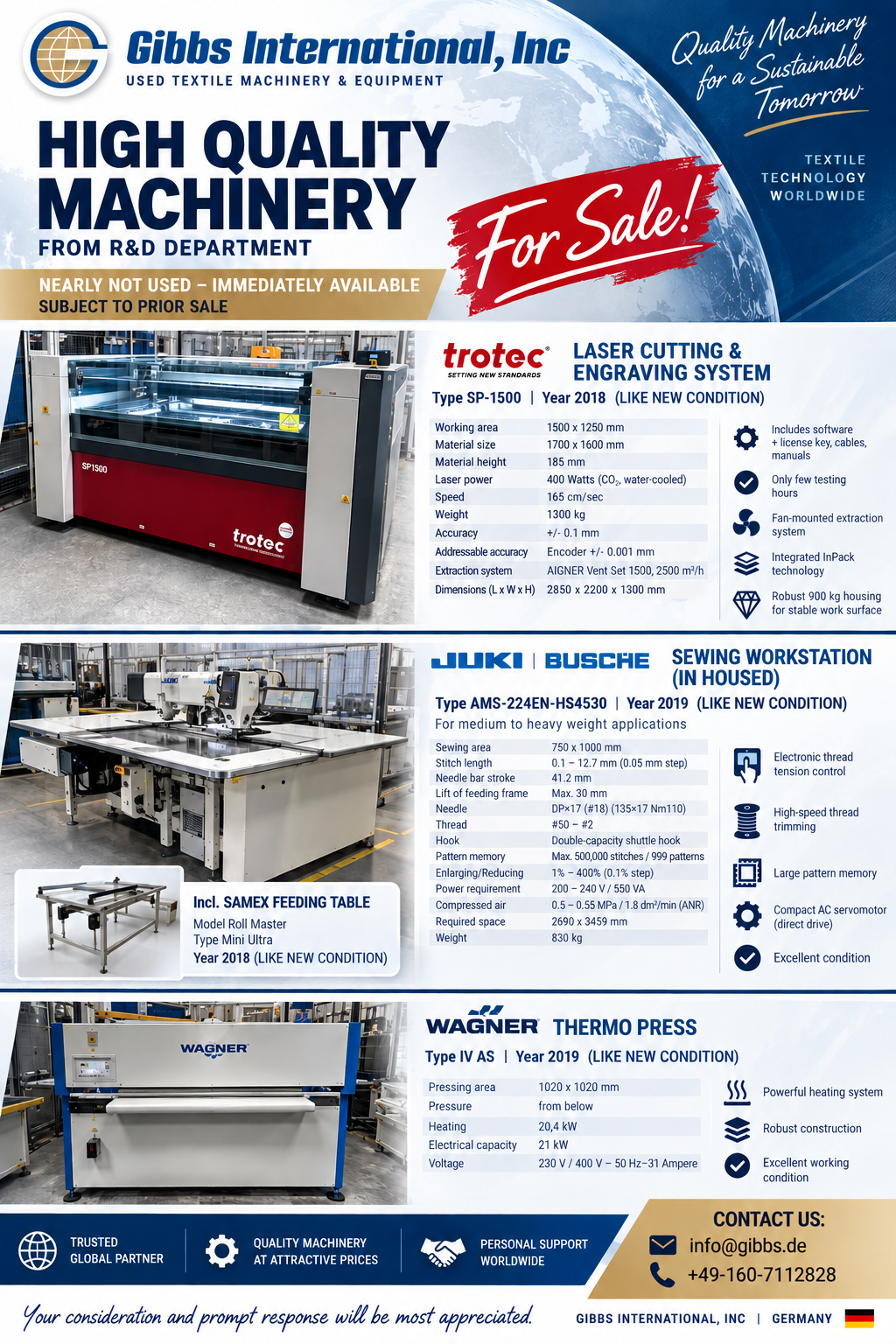

LASER CUTTING /ENGRAVING AND SEWING LINE YEAR 2019-2020 (LIKE NEW)
We have available the following Nearly Not Used Machines from R&D Department, subject to prior sale:
PROPOSAL – 6454-LA
1 TROTEC (AUSTRIA) LASER CUTTING & ENGRAVING SYSTEM
Type SP-1500
Year 2018 (LIKE NEW CONDITION)
Working area: 1500 x 1250 mm
Material size: 1700 x 1600 mm
Material height: 185 mm
CO2 Laser 200 Watts incl. Water Cooling
Includes: Software + license key, connection cable, manuals.
Only few testing/operating hours
Laser power: 400 watts – water-cooled
Speed: 165 cm/sec
Weight: 1300 kg
Accuracy: +/- 0.1 mm
Addressable accuracy: Encoder +/- 0.001 mm
with Fan-mounted AIGNER extraction system on the work head,
Type Vent Set 1500, Capacity 2500 m³/h
integrated InPack technology
The 900 kg housing provides a robust, stable work surface
for laser engraving and cutting.
Machine dimensions: 2850 x 2200 x 1300 mm
1 JUKI/BUSCHE SEWING WORKSTATION (IN HOUSED)
Type AMS-224EN-HS4530
Year 2019(LIKE NEW CONDITION)
Sewing Area 750 mm x 1000 mm
for medium to heavy weight applications
Settable stitch length: 0.1~12.7mm (0.05mm step)
Needle bar stroke: 41.2mm
Lift of the feeding frame: Max. 30mm
Lift / Stroke of intermediate presser: Lifting amount : 20mm /
Stroke: Standard 4mm (0~10mm)
Variable lower position of the intermediate presser: Standard 0~3.5mm (max. 0~7.0mm)
Change in height of the intermediate presser: Stepless control by programming (controlled by a stepping motor)
Needle thread tension: Active tension (electronic thread tension control mechanism)
Needle thread breakage detecting device: Provided as standard
Needle thread clamp: Stepping-motor driven clamping on the underside of the throat plate
Prevention of the slip-off of thread at the beginning of sewing: Prevented by the needle thread clamp and active tension
Thread trimming device: High-speed thread trimming mechanism driven by a stepping motor
Needle (at the time of delivery): DP×17 (#18) (135×17 Nm110)
Thread: #50~#2
Hook: Double-capacity shuttle hook
Storage of pattern data in the memory: Main-body memory: Max. 500,000 stitches, 999 patterns (max. 50,000 stitches/pattern)
External media: Max. 50,000,000 stitches, 999 patterns (max. 50,000 stitches / pattern)
Enlarging/Reducing facility: Pattern can be enlarged/reduced independently in the X and Y directions 1%~400% (0.1% step)
Enlarging / Reducing system: Pattern enlargement/reduction can be done by increasing / decreasing either stitch length or the number of stitches
(At the time of pattern selection, only the stitch length can be increased/decreased.)
Bobbin thread counter Product counter: Up/Down system (0~9,999)
Lubrication: The frame is lubricated with grease/The hook and hook driving shaft gear box are lubricated from a tank
Lubricating oil: Hook: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Sewing machine motor: Compact AC servomotor (direct-drive system)
Power requirement /consumption: Single-phase, 3-phase 200~240V / 550VA
Compressed air / Air consumption: 0.5~0.55MPa (Max. 0.55MPa) / 1.8dm³ / min (ANR)
Required Space to install: 2690 mm x 3459 mm
Weight 830 kg
with 1 SAMEX FEEDING TABLE
Model Roll Master
Type Mini Ultra
Year 2018 (LIKE NEW CONDITION)
1 WAGNER THERMO PRESS
Type IV AS
Year 2019 (LIKE NEW CONDITION)
Pressing Area: 1020 mm x 1020 mm
Pressure from below
Heating 20,4 kW
Elec. Capacity 21 kW
Voltage 230 V/400 V – 50 Hz- 31 Ampere
PRICE: TO BE NEGOTIATED
