2 x DUBOIS VEF VERTICAL EDGE UV PAINT LINES, YEAR 2017-2018
We have available for sale the following DUBOIS VEF VERTICAL EDGE UV PAINT LINES subject to prior sale and availability only;
PROPOSAL NUMBER – 16929-PAINT

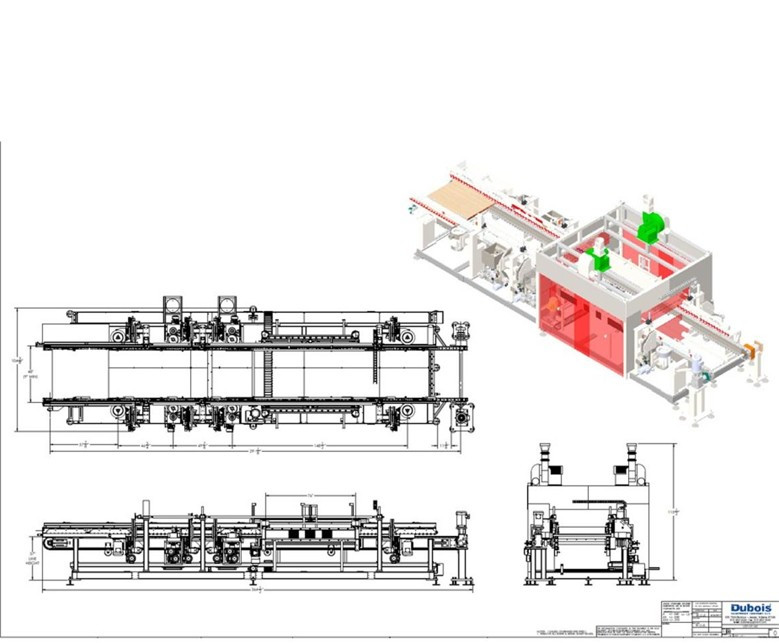

1 DUBOIS VEF-0948 VERTICAL EDGE UV PAINT LINE
Model VEF-0948
Shop Order 5672
Year of Manufacture 2018
Panel Width: 9" to 48"
Panel Thickness: 1-3/8" to 1-3/4"
Total Connected Load: ~90–115 kW
Installed Footprint: ~180–210 sq ft
PRICE: TO BE NEGOTIATED
1 DUBOIS VEF-4896 VERTICAL EDGE UV PAINT LINE
Model VEF-4896
Shop Order 5669
Year of Manufacture 2017
Panel Width: 48" to 96"
Panel Thickness: 1-3/8" to 1-3/4"
Total Connected Load: ~110–145 kW
Installed Footprint: ~225–275 sq ft
PRICE: TO BE NEGOTIATED
Common Specifications (Both Lines):
Powered conveyor handling, 37" nominal line height
Vertical edge scuffing stations (dual-side)
Roller-applied UV-curable liquid paint, both edges
67" UV curing tunnel, gallium UV lamps (300 W/in)
Controls: Allen-Bradley CompactLogix PLC (1769-L36ERM)
Operator Interface: 10" PanelView Plus HMI
Drives: Allen-Bradley PowerFlex 525 VFDs
Power Supply: 480V / 3-phase / 60 Hz, 150-amp main disconnect
Compressed Air: ~4–6 SCFM @ 80–100 PSI
Coatings: UV-curable liquid paints, low-VOC operation
Your consideration and immediate replies are highly recommended.
